PCB Standards: IPC Guide for Manufacturing & Assembly

QUICK ANSWER  For a typical rigid PCB, IPC-2221 and IPC-2222 guide the design, IPC-6012 establishes fabrication performance requirements, and IPC-A-600 provides visual acceptance guidance. For assembly, IPC J-STD-001 controls soldering materials and processes, while IPC-A-610 defines electronic assembly acceptability.

PCB standards define how a printed circuit board should be designed, fabricated, inspected, assembled, tested, and documented. They give designers, PCB manufacturers, assembly providers, and buyers a common language for discussing quality.

However, specifying "IPC compliant" on a purchase order is not enough. Different IPC documents govern different stages of production, and IPC Class 1, 2, or 3 must be selected according to the product's reliability requirements.

This guide explains the most important IPC standards for PCB manufacturing, how the three performance classes differ, what to include in a PCB procurement specification, and how to conduct an effective PCB supplier qualification.

What Are PCB Standards?

PCB standards are documented requirements and guidelines covering areas such as:

• PCB layout and conductor spacing

• Base materials and copper foil

• Lamination, drilling, plating, and etching

• Annular rings, vias, and hole-wall quality

• Solder mask and surface finishes

• Dimensional and electrical testing

• Soldering process control

• Bare-board and assembled-board acceptance

• Handling, storage, repair, and traceability

The Five Functions of IPC PCB Standards

One common sourcing mistake is treating every IPC document as an interchangeable quality standard. In practice, IPC standards perform different functions.

A design standard does not replace a performance specification. Similarly, an acceptance document does not tell a manufacturer how to control every production process. A robust PCB specification connects all five functions.

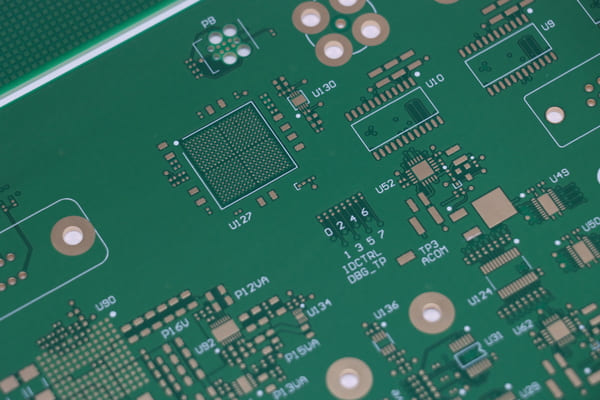

Key IPC Standards for PCB Design

IPC-2221: Generic Standard on Printed Board Design

IPC-2221 is the general starting point for printed board design. It addresses subjects such as material selection, conductor routing, electrical and mechanical constraints, thermal management, testability, and documentation.

IPC-2222: Rigid PCB Design

IPC-2222 contains design requirements specific to rigid organic printed boards. It supplements IPC-2221 for single-sided, double-sided, and multilayer rigid PCB designs. It is especially relevant when defining:

• Layer structures

• Via and through-hole construction

• Conductor geometry

• Board thickness

• Mechanical features

• Test coupons

IPC-2223: Flex and Rigid-Flex PCB Design

IPC-2223 applies to flexible and rigid-flex printed boards. Flex circuits introduce additional considerations that do not apply to standard rigid PCBs, including:

• Bend areas and bend radius

• Neutral bend-axis positioning

• Coverlay openings

• Stiffener transitions

• Copper grain direction

• Dynamic versus static flexing

• Stress concentration near rigid-to-flex transitions

Calling out only IPC-2221 for a rigid-flex design therefore leaves important requirements undefined.

IPC-2228: RF and Microwave PCB Design

IPC-2228 is intended for high-frequency and microwave printed boards. It addresses manufacturability considerations that become important when dielectric properties, conductor geometry, insertion loss, and impedance consistency affect circuit performance.

IPC-7352: Land Pattern Design

IPC-7352 provides current generic guidance for component land-pattern geometry and the formation of reliable solder joints. The older IPC-7351B is still frequently referenced online, but the official revision table identifies it as no longer maintained. IPC-7352 was published in 2023.

This illustrates an important rule: never copy a standard number from an old drawing or article without checking its current status. See the IPC-7352 description

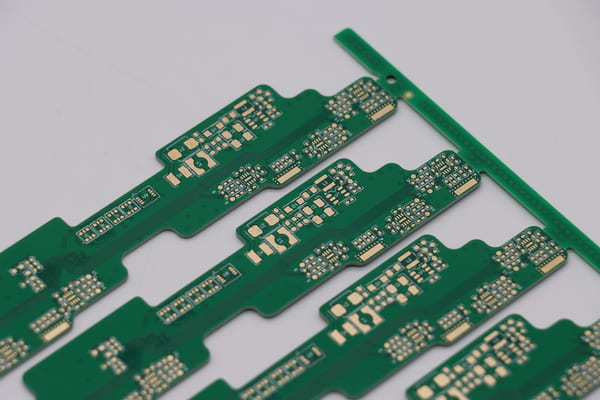

IPC Standards for PCB Manufacturing

IPC-6011: Generic Performance Specification

IPC-6011 provides general performance requirements that apply across printed-board technologies. It works with a sectional performance standard appropriate to the board type.

IPC-6012: Rigid PCB Qualification and Performance

IPC-6012 is one of the most important IPC standards for PCB manufacturing. It establishes qualification and performance requirements for rigid printed boards, including:

• Single- and double-sided boards

• Multilayer PCBs

• Plated through-holes

• Blind and buried vias

• Microvias

• Embedded passive structures

• Metal-core constructions

The current revision is IPC-6012F. Application-specific addenda are also available for automotive, space and military, and medical products. The addendum must be compatible with the base standard revision specified in the contract.

IPC-6012 defines product requirements. It should not be confused with IPC-A-600, which visually illustrates acceptance conditions.

IPC-6013: Flexible and Rigid-Flex PCB Performance

IPC-6013 establishes qualification and performance requirements for flexible and rigid-flex printed boards. It covers several constructions, from single-layer flex circuits to multilayer rigid-flex boards.

When sourcing rigid-flex PCBs, a complete specification commonly includes:

• IPC-2221 and IPC-2223 for design

• IPC-6011 and IPC-6013 for performance

• IPC-A-600 for acceptance guidance

• Applicable material and test specifications

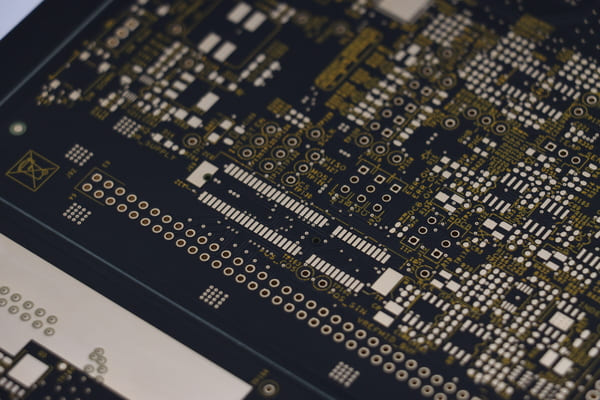

IPC-A-600: Acceptability of Printed Boards

IPC-A-600 is the widely used visual acceptance standard for bare printed boards. It presents target, acceptable, and nonconforming conditions for externally and internally observable PCB features.

IPC-A-600 may be used to evaluate features such as:

• Conductor definition

• Solder mask registration

• Annular rings

• Plated through-holes

• Voids and nodules

• Inner-layer registration

• Laminate defects

• Microsection observations

However, IPC-A-600 is primarily a visual interpretation of requirements contained in performance specifications such as IPC-6012. It should not be used as the only fabrication requirement.

Materials, Solder Mask, and Surface-Finish Standards

Depending on the PCB construction, additional standards may include:

• IPC-4101: Base materials for rigid and multilayer printed boards

• IPC-4562: Metal foil for printed board applications

• IPC-SM-840: Qualification and performance of permanent solder mask and flexible cover materials

• IPC-4552: ENIG surface-finish specification

• IPC-4555: High-temperature OSP performance specification

• IPC-4556: ENEPIG surface-finish specification

• IPC-TM-650: Standardized chemical, mechanical, electrical, and environmental test methods

• IPC-1602: Printed-board handling and storage

Material specifications should include the applicable IPC-4101 slash sheet or a clearly approved laminate system. Writing only "FR-4" does not define Tg, decomposition temperature, z-axis expansion, loss characteristics, flammability, or CAF performance.

IPC Class 1, Class 2, and Class 3 Explained

IPC performance classes reflect progressively higher expectations for performance, assurance, and inspection.

The official IPC guidance emphasizes that the customer is responsible for specifying the required class. It also notes that an assembled board cannot achieve a higher class than its underlying bare PCB. See the IPC performance-class guidance

Does Every Medical, Automotive, or Aerospace PCB Require Class 3?

No. Product category alone does not determine IPC class.

A noncritical medical accessory, an infotainment controller, and a flight-control system can have very different reliability requirements even though they fall within regulated industries. The correct class should be selected through product risk analysis, customer requirements, regulatory expectations, and intended operating conditions.

Application-specific addenda may also be required. Class 3 by itself does not automatically satisfy every automotive, medical, aerospace, defense, or space requirement.

Why Not Specify Class 3 for Every PCB?

Class 3 can require tighter acceptance limits, more process control, additional inspection, more extensive documentation, and higher manufacturing capability. These requirements can affect:

• PCB price

• Fabrication lead time

• Available supplier pool

• Inspection cost

• Manufacturing yield

• Documentation burden

Specify Class 3 when the product risk justifies it, not simply because it sounds superior.

IPC Standards for PCB Assembly

The two most important documents for PCB assembly are IPC J-STD-001 and IPC-A-610.

IPC J-STD-001: Soldering Process Requirements

IPC J-STD-001 defines materials, methods, process controls, and verification requirements for producing soldered electrical and electronic assemblies. It applies to leaded and lead-free soldering processes.

IPC-A-610: Electronic Assembly Acceptance

IPC-A-610 defines acceptability criteria for completed electronic assemblies. It is commonly used by production inspectors and quality teams to evaluate component installation, solder joints, cleanliness, coating, and assembly workmanship.

A simple way to remember the difference is:

• J-STD-001: How a controlled soldering process should produce the assembly

• IPC-A-610: How the completed assembly is evaluated

Additional assembly documents may include:

• IPC-7525 for stencil design

• IPC-7093 for bottom-termination components

• IPC-7095 for BGA design and assembly

• IPC-7711/21 for rework, modification, and repair

• IPC/WHMA-A-620 for cable and wire-harness assemblies

• J-STD-002 and J-STD-003 for solderability testing

If a product requires an automotive or space addendum, specify the matching revision rather than adding an unrelated or outdated document.

PCB Supplier Qualification Checklist

Effective PCB supplier qualification verifies whether a manufacturer can repeatedly build the specific technology you need. A quality certificate alone is not sufficient.

1. Verify the Quality Management System

Request and validate applicable certificates, which may include:

• ISO 9001

• IATF 16949 for automotive work

• ISO 13485 for medical-device supply chains

• AS9100 for aerospace applications

• UL recognition for applicable PCB constructions

Confirm the certificate scope, manufacturing address, issuing body, expiration date, and whether the quoted factory is included.

2. Match Capability to the Actual Design

Compare the design with the supplier's demonstrated production capability:

• Layer count and board thickness

• Minimum trace and spacing

• Minimum mechanical and laser-drilled hole size

• Aspect ratio

• Blind, buried, stacked, and staggered vias

• Via-in-pad and copper-filled microvias

• Flex and rigid-flex construction

• Controlled impedance

• High-frequency or low-loss materials

• Heavy copper

• Surface finishes

• Tolerance and registration capability

Do not qualify a factory only from its advertised maximum values. Ask for normal production capability and proven yield on similar builds.

3. Audit Process Control

A process audit should review controls for:

• Incoming material verification

• Storage and shelf-life management

• Inner-layer imaging and AOI

• Lamination recipes and press control

• Drilling and desmear

• Electroless copper and electrolytic plating

• Etching and conductor-width control

• Solder-mask application

• Surface finishing

• Routing and dimensional inspection

• Final cleaning, packaging, and storage

For each critical process, check whether parameters are documented, monitored, traceable, and supported by corrective-action procedures.

4. Review Inspection and Test Capability

Depending on product risk, request evidence of:

• Automated optical inspection

• Automated visual inspection

• Flying-probe or fixture electrical testing

• Microsection analysis

• Plating-thickness measurement

• Impedance coupon testing

• Ionic cleanliness testing

• Solderability testing

• Thermal-stress or reflow-simulation testing

• X-ray inspection for hidden assembly joints

• Functional or in-circuit testing for PCBAs

The requirement is not simply that equipment exists. Verify calibration, operator training, sampling plans, acceptance limits, and record retention.

5. Check Traceability and Change Control

A qualified supplier should be able to trace a shipment to relevant production information, such as:

• Material manufacturer and lot

• Production traveler

• Process dates

• Inspection and test records

• Nonconformance and rework history

• Final acceptance status

The supply agreement should also define when the customer must be notified about material, process, equipment, production-location, or sub-supplier changes.

6. Run a Pilot Lot

Before approving high-volume production, place a representative pilot order and evaluate:

• DFM communication quality

• Engineering-question response time

• Conformance to drawing notes

• Dimensional results

• Electrical-test performance

• Microsection results where applicable

• Impedance data

• Documentation completeness

• Packaging and delivery

• Assembly yield

A supplier that passes a document audit can still fail to execute consistently. Pilot-lot performance provides direct evidence.

7. Maintain a Supplier Scorecard

Safety-critical requirements should be treated as pass/fail gates rather than averaged into a score.

Common PCB Standards Mistakes

Using "IPC compliant" without a standard number

IPC publishes hundreds of standards. The statement does not identify the applicable document, class, revision, or exceptions.

Using IPC-A-600 as the only manufacturing specification

IPC-A-600 helps inspectors interpret visible conditions. IPC-6012 or another appropriate performance specification should define the rigid board's fabrication requirements.

Confusing PCB and PCBA standards

IPC-A-600 applies to bare printed boards. IPC-A-610 applies to populated and soldered electronic assemblies.

Copying outdated standards

Some frequently quoted documents have been replaced, superseded, or are no longer maintained. For example, IPC-1601 has been superseded by IPC-1602, while IPC-7352 provides current land-pattern guidance.

Assuming ISO 9001 defines product acceptance

ISO 9001 evaluates the quality management system. It does not replace PCB design rules, performance requirements, workmanship criteria, or customer drawings.

Assuming an employee certificate qualifies the entire factory

IPC training credentials can demonstrate personnel knowledge, but they do not automatically prove that every factory process, product, or production lot complies with a specified standard.

Working With PCBgogo

At PCBgogo, we turn your PCB designs into production-ready boards through quick-turn PCB fabrication, turnkey PCB assembly, component sourcing, and professional engineering file review.

Our manufacturing and quality-control capabilities include automated optical inspection (AOI), X-ray inspection, electrical testing, and controlled-impedance verification. We support rigid, flex, rigid-flex, HDI, and multilayer PCBs for applications ranging from rapid prototyping to volume production.

Our quality management systems and manufacturing processes are supported by certifications and credentials including ISO 9001, IATF 16949, ISO 13485, and UL. You can review our PCB manufacturing capabilities to determine whether they match your board specifications.

For a new project, you can:

• Review standard FR-4 PCB capabilities

• Explore turnkey PCB assembly services

• Upload Gerber files for an instant PCB fabrication quote

Frequently Asked Questions

What are the most important IPC PCB standards?

For rigid PCBs, the most frequently used documents include IPC-2221 and IPC-2222 for design, IPC-6011 and IPC-6012 for performance, and IPC-A-600 for bare-board acceptance. The exact combination depends on the board technology and application.

What is the main IPC standard for PCB assembly?

IPC J-STD-001 establishes soldering process requirements, while IPC-A-610 defines acceptance criteria for completed electronic assemblies. They are commonly used together.

What is the difference between IPC-A-600 and IPC-A-610?

IPC-A-600 covers the acceptability of bare printed boards. IPC-A-610 covers populated and soldered electronic assemblies.

Is IPC Class 3 always better than Class 2?

Class 3 provides a higher level of assurance for critical applications, but it can increase cost, inspection, lead time, and supplier constraints. The correct class should be selected through risk and application analysis.

Does ISO 9001 replace IPC standards for PCB manufacturing?

No. ISO 9001 addresses the supplier's quality management system. IPC standards define PCB-specific design, manufacturing, performance, process, and acceptance requirements.

How do I verify a PCB supplier's IPC compliance?

Specify the exact standards and revisions, audit production and inspection controls, review personnel competence, run a representative pilot lot, and request objective quality records. A general "IPC compliant" statement is not enough.
